True Insight into Cutting Tools Originates from the Production Floor

Pin Power’s approach to brazing begins not with the vacuum chamber, but with the tool itself—analyzing insert geometry, substrate structure, coefficients of thermal expansion (CTE), stress distribution, interfacial wetting behavior, and actual cutting loads.

1. Precise Parameter Control

• Mitigating Thermal Stress: When joining dissimilar materials (e.g., diamond to tungsten carbide or steel), differences in coefficients of thermal expansion (CTE) can generate mismatched interfacial stresses during the heating and cooling cycles. This often leads to micro-cracking or concentration of residual stress. The PP series employs precise control over heating and cooling rates to maintain thermal stress within the material's allowable limits, effectively mitigating interfacial damage and preventing crack formation.
• High-Temperature Precision: Brazing CBN or CVD tools requires higher temperature ranges. Our system delivers precise temperature regulation with a holding stability of ±1°C, ensuring that materials do not suffer from delamination or thermal degradation due to overheating.

2. Complete Interface Integrity: Full Wetting, Void-Free, and Gap-Free

In microscopic cross-section analysis, Pin Power brazing interfaces demonstrate complete structural integrity:

• Zero Voids
• Zero Gaps
• No Areas of Incomplete Wetting

Pin Power’s active silver brazing alloys exhibit high wettability, forming a stable and uniform metallization layer at the interface. This ensures the tool maintains brazing stability and exceptional resistance to peeling (shear strength) even under prolonged cutting loads.

3. Graphitization Suppression: Preserving Diamond Structure to Extend Tool Life

Raman spectroscopy analysis confirms that the Pin Power PP-S system, utilizing optimized parameters, results in a significantly lower degree of post-brazing graphitization. This indicates that the diamond’s surface structure remains intact and undamaged.

This delivers immediate benefits:

• Prevention of Cutting Tip Graphitization: Enhances edge durability and sharpness.
• Extended Tool Lifespan: Maximizes the service life of the tool.
• Consistent Cutting Performance: Ensures stability during operation.
• Ideal for Demanding Materials: Particularly suited for machining high-requirement materials such as CFRP, Titanium alloys, SiC, Cu-based composites, and Aluminum alloys.

In machining environments characterized by high abrasion, extreme heat, and heavy cutting loads, a pristine diamond surface is the ultimate guarantee of consistent tool life. This design philosophy—centered on material science and tool behavior—enables the Pin Power series to consistently replicate distinct quality across global production lines, eliminating reliance on the subjective experience of individual operators.

4. Brazing Steel Tools: Precision Parameter Design to Control FeTi Formation

In vacuum brazing, when using titanium-containing active brazing alloys, Iron (Fe) from the substrate and Titanium (Ti) from the alloy can react to form FeTi intermetallic compounds at the interface.

While a trace amount of FeTi facilitates interfacial bonding, if left uncontrolled, the excessive formation of this compound creates a brittle layer. This brittleness significantly weakens the brazing joint strength and compromises the overall lifespan of the tool.

Pin Power addresses this through meticulous optimization of process parameters. We ensure a stable and reliable interface structure by strictly controlling the reaction. This guarantees that brazing strength meets rigorous standards and maintains durability under actual machining conditions, making it particularly effective for Steel and Carbide (Hard Metal) tools.

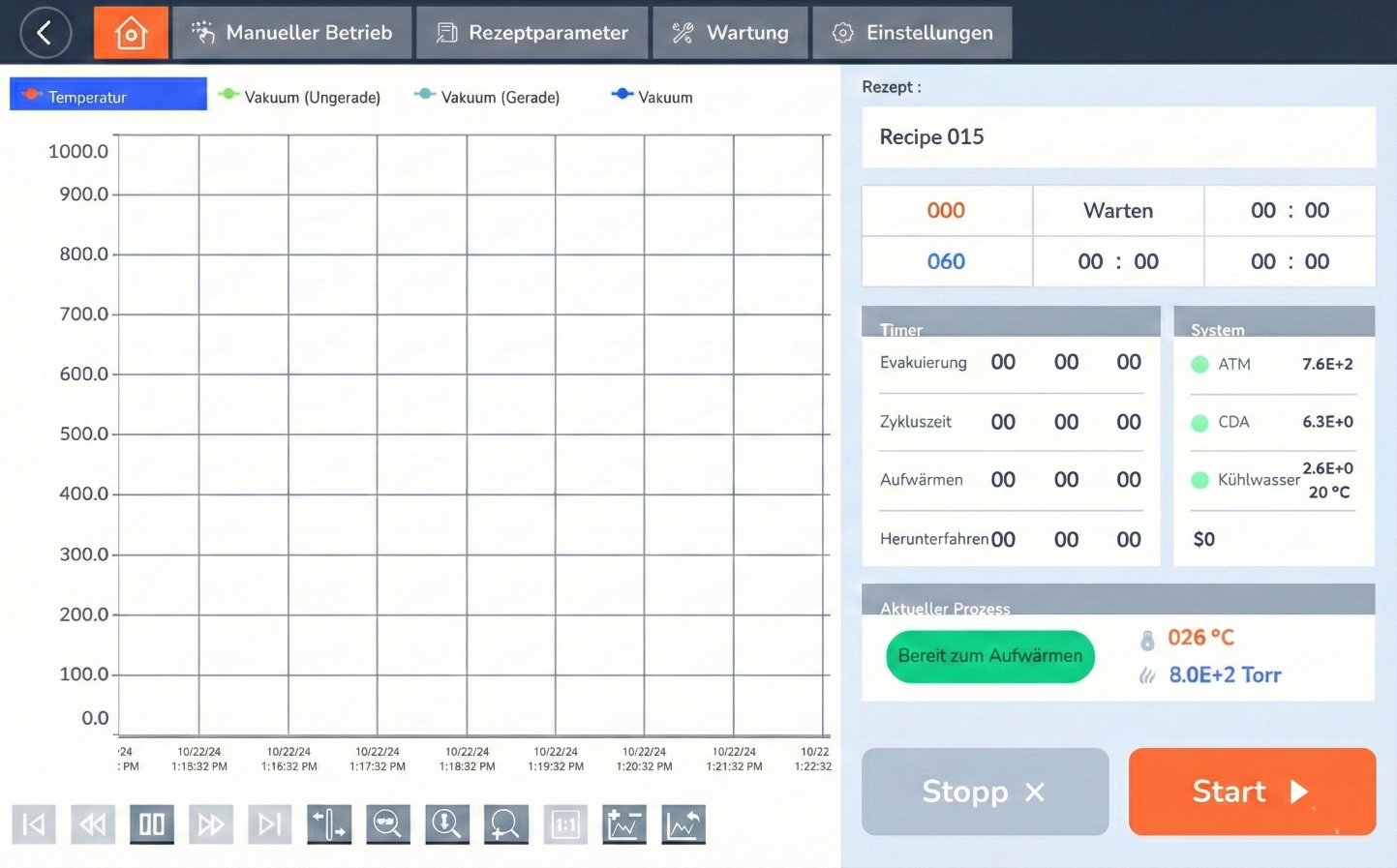

Comprehensive Production Traceability: Making Every Brazing Cycle a Quantifiable and Verifiable Event

• MID Certified Energy Management System: Equipped with a MID-certified power metering module, the system precisely records the actual energy consumption for every batch. This empowers enterprises with quantifiable energy data, assisting them in achieving sustainability goals and lowering overall operational costs.
• Remote Access and Data Logging: The system facilitates efficient network diagnostics and remote troubleshooting. By simultaneously tracking user operation logs and analyzing process data, it effectively minimizes downtime and enhances Overall Equipment Effectiveness (OEE).

Energy Efficiency and Environmental Stewardship: A Core Industrial Responsibility

Brazing is inherently a high-temperature process where every kilowatt-hour represents a tangible financial cost. Pin Power’s energy management system quantifies electricity consumption on a batch-by-batch basis. Utilizing a MID-certified metering module, the system provides verifiable data directly applicable to:

• Internal Cost Analysis
• Plant-wide Energy Optimization
• ESG Reporting and Supply Chain Compliance

Under equivalent production capacity conditions, the PP series improves energy efficiency, eliminating 20–30% of unnecessary energy consumption compared to traditional brazing methods. This goes beyond simple cost reduction; it represents the operational responsibility of the modern factory.

Brazing Alloy Expertise: Specific Alloys and Precise Formulations for Every Tool

Pin Power's PPBA series brazing alloys are categorized into distinct formulations tailored to tool application, material composition, edge geometry, thickness, and substrate reactivity.

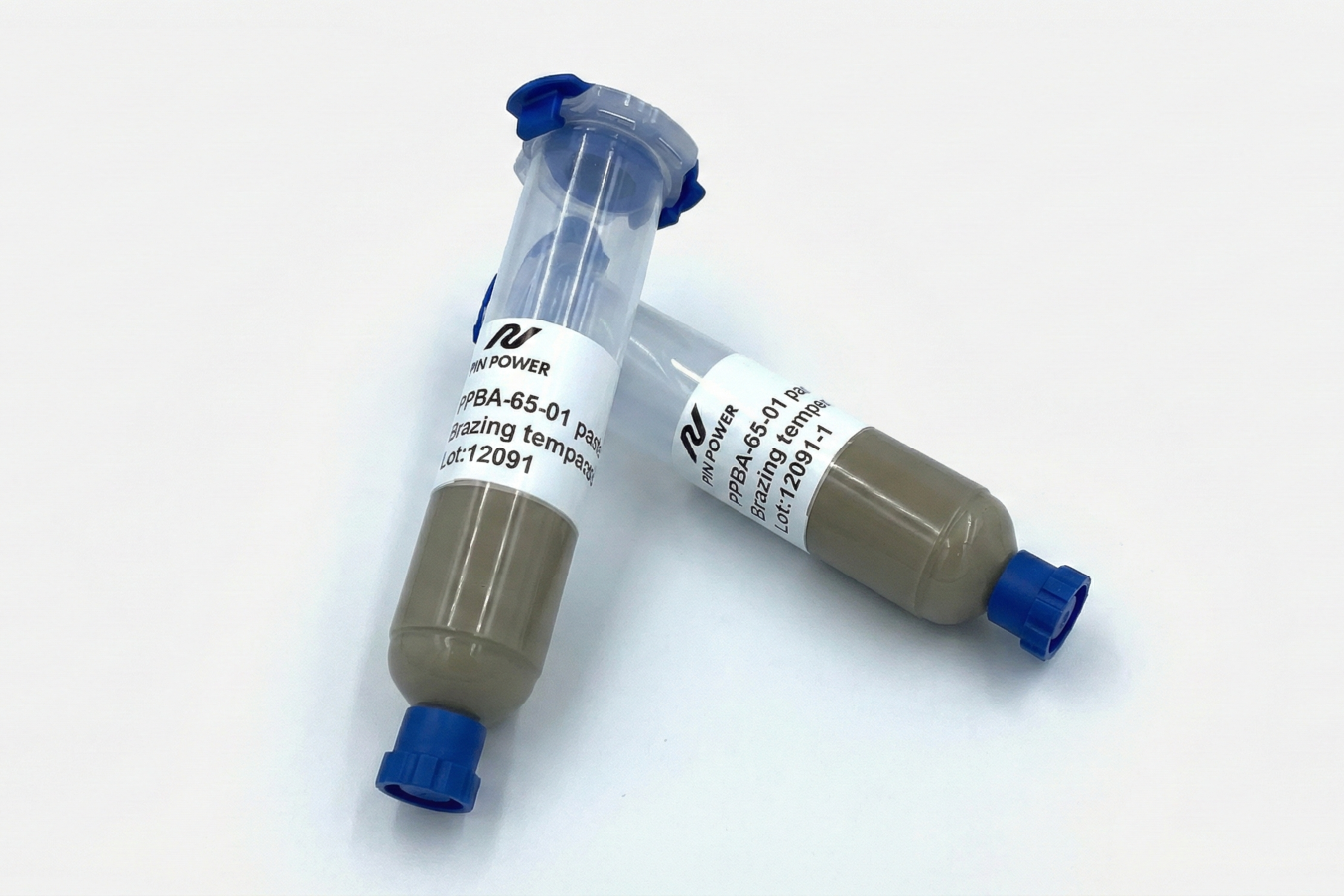

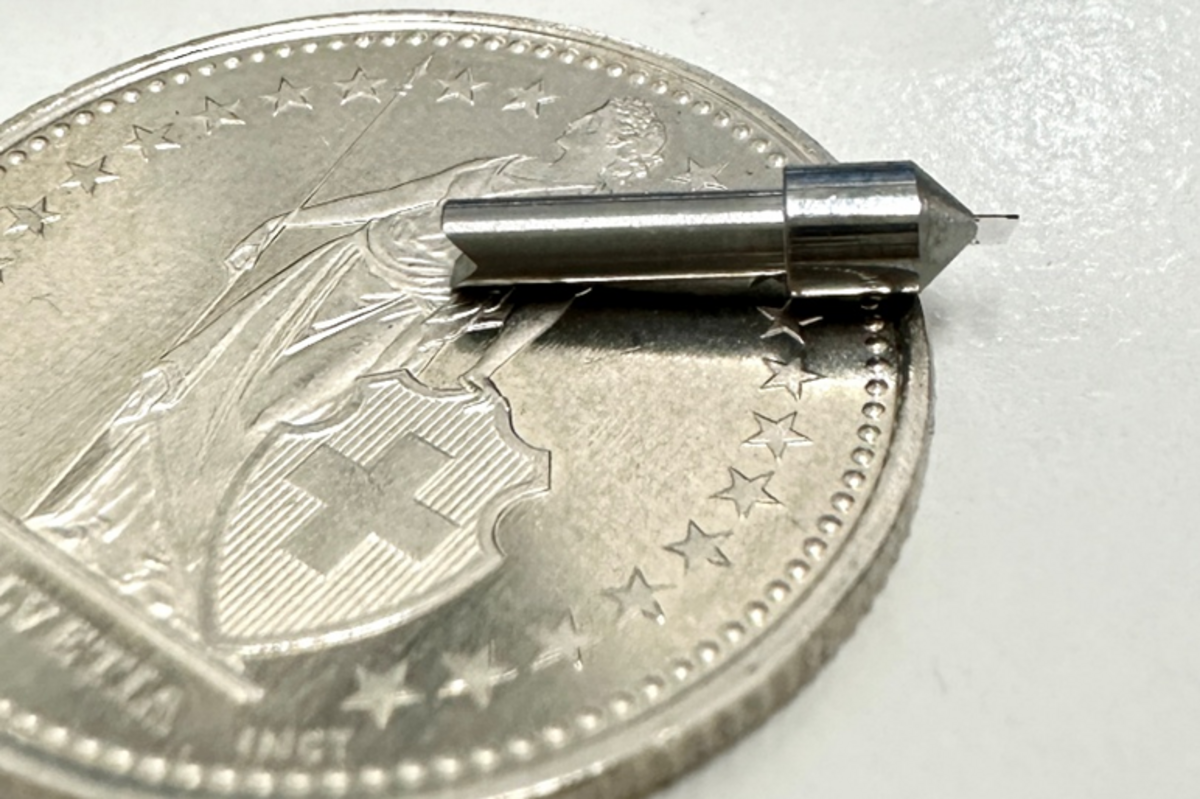

Achieving High-Precision Diamond Tool Brazing, the PPBA series formulations are fine-tuned according to specific application characteristics. This covers a wide range of material properties (joining Steel or Carbide substrates with PCD, CVD, CBN, PCBN, or Ceramics), as well as requirements for tip geometry, interfacial reactivity, and positioning accuracy:

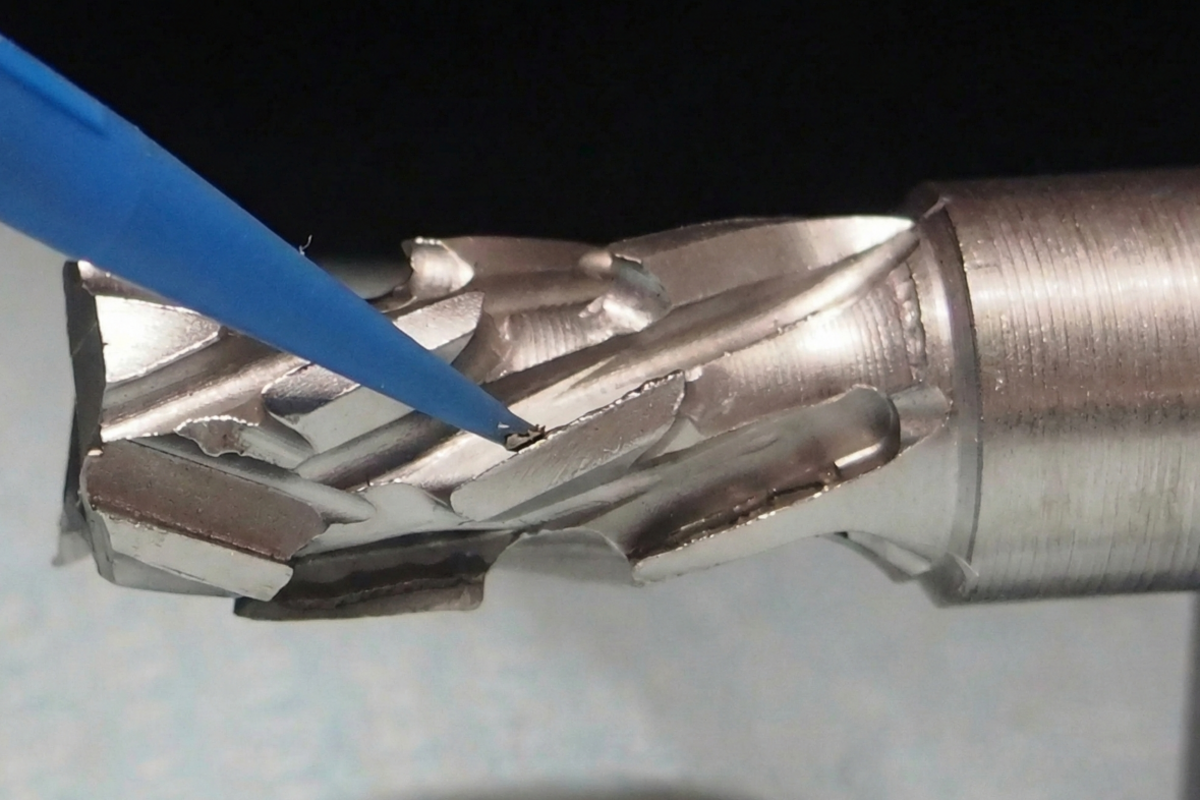

• High-Viscosity Alloys: Ideal for Reamers and End Mills. These alloys prevent movement during the process, aiding in stable positioning and alignment.
• High-Flow Alloys: Ideal for PCD Drills. These alloys offer superior capillary action, ensuring complete interface filling and structural integrity.
• Dedicated Formulations: Specific reaction temperature ranges are adjusted individually for CVD, Monocrystalline Diamond, PCD, and CBN to match their unique thermal characteristics.

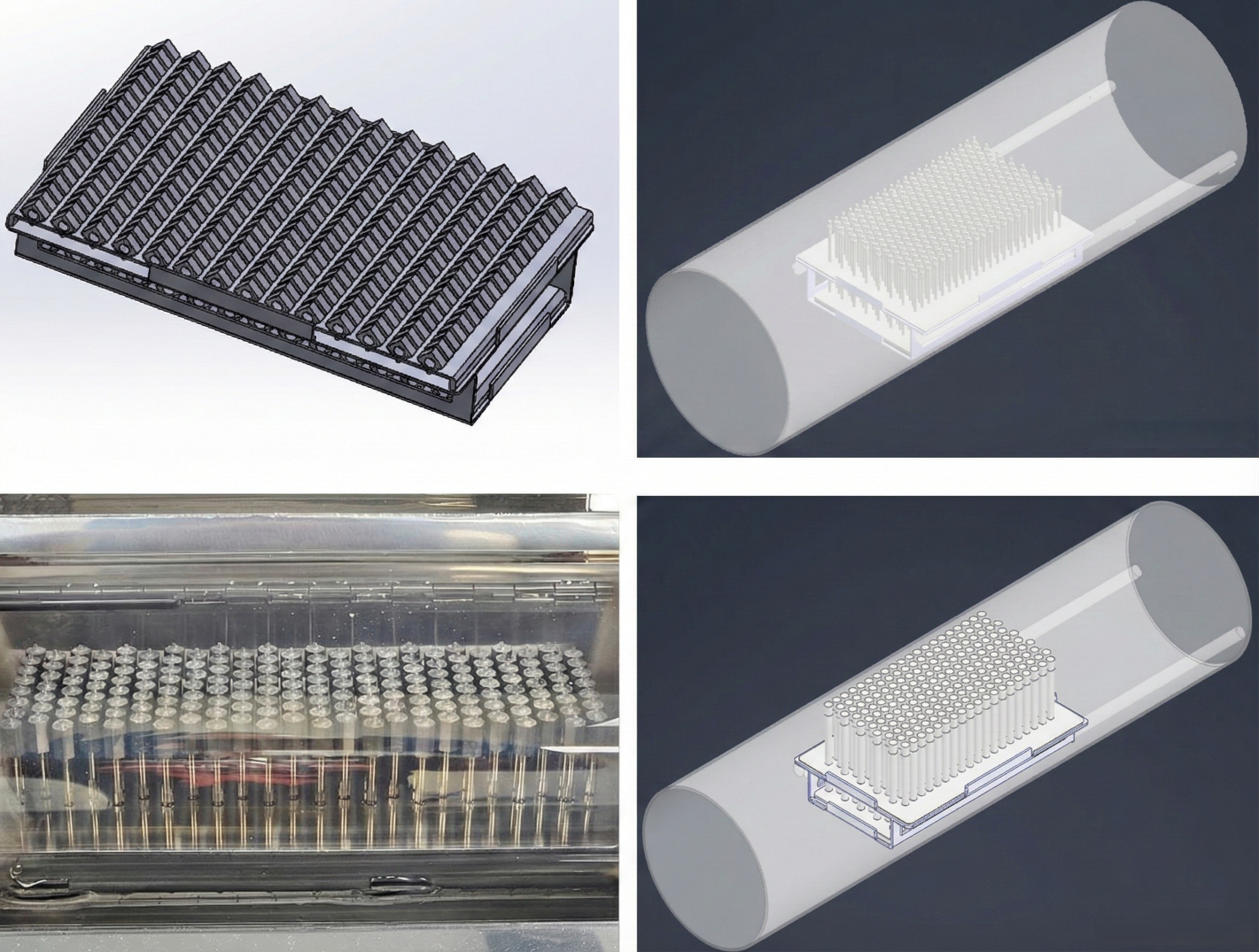

Pin Power provides comprehensive and consistent engineering solutions. Based on distinct tool structures and machining objectives, we recommend the optimal brazing alloy paired with matching fixture designs, thermal profiles (heating/cooling curves), and interface control strategies.

Global Collaboration: Building Trust Through Tangible Results

Pin Power collaborates closely with tool manufacturers worldwide, maintaining dedicated Demo Centers in the UK, Germany, the USA, and Japan.

Clients do not need to rely on speculation. Instead, they can visit our centers to personally:

• Inspect interfaces and brazing layers.
• Compare thermal profiles.
• Test various tools and brazing alloys.
• Validate batch-to-batch consistency.

The true value of Pin Power lies not merely in supplying vacuum brazing equipment, but in assisting tool manufacturers to establish a comprehensive brazing engineering system. This system is verified for mass production, guarantees diamond integrity, and offers full data traceability.

From controlling graphitization and maintaining interface integrity to the precise regulation of heating/cooling rates and material reactions, every detail we prioritize stems from extensive field testing and the rigorous verification of actual tool lifespan curves.

Through intuitive operation, stable process control, and comprehensive energy and data management, the PP series allows brazing expertise to be preserved and replicated through parameterization and automation. This ensures that optimal craftsmanship remains consistent across every batch.

By integrating specialized brazing alloys, fixture design, and material engineering know-how, we empower clients to achieve extended tool life, reduced risk, and highly predictable production capabilities in the diamond tool sector.

Ultimately, we believe:

True competitiveness is driven not by marketing, but by the lifespan, stability, and consistency of the tools in mass production.
